Plan your project timeline with complete clarity using this Schedule Network Diagram Template — a powerful visual tool that helps you map activities, understand task dependencies, identify the critical path, and ensure your project stays on track.

Perfect for project managers, construction planners, engineers, PMO teams, and students preparing for PMP® or CAPM® certification, this template gives you a ready-to-use, professional Schedule Network Diagram modeled exactly like those used in real-world project planning.

What Is a Schedule Network Diagram?

A Schedule Network Diagram is a visual flowchart that shows:

• The sequence of activities
• How tasks are connected
• Which activities depend on others
• The overall flow of the project
• The critical path that determines your project’s minimum duration

This template transforms those concepts into a clean, editable, and easy-to-use Excel file — no manual drawing required.

Why This Template Is Essential

A project fails when the timelines are unclear, dependencies are misunderstood, or delays are not caught early.

This template helps you:

✔ Visualize the entire project structure at a glance

✔ Identify the critical path

✔ Calculate Early Start (ES), Early Finish (EF), Late Start (LS), Late Finish (LF)

✔ Calculate Float (Slack) automatically

✔ Understand where delays will impact the project

✔ Improve project planning, scheduling, and monitoring

Everything is already laid out — simply enter your durations and start analyzing.

What’s Inside the Template

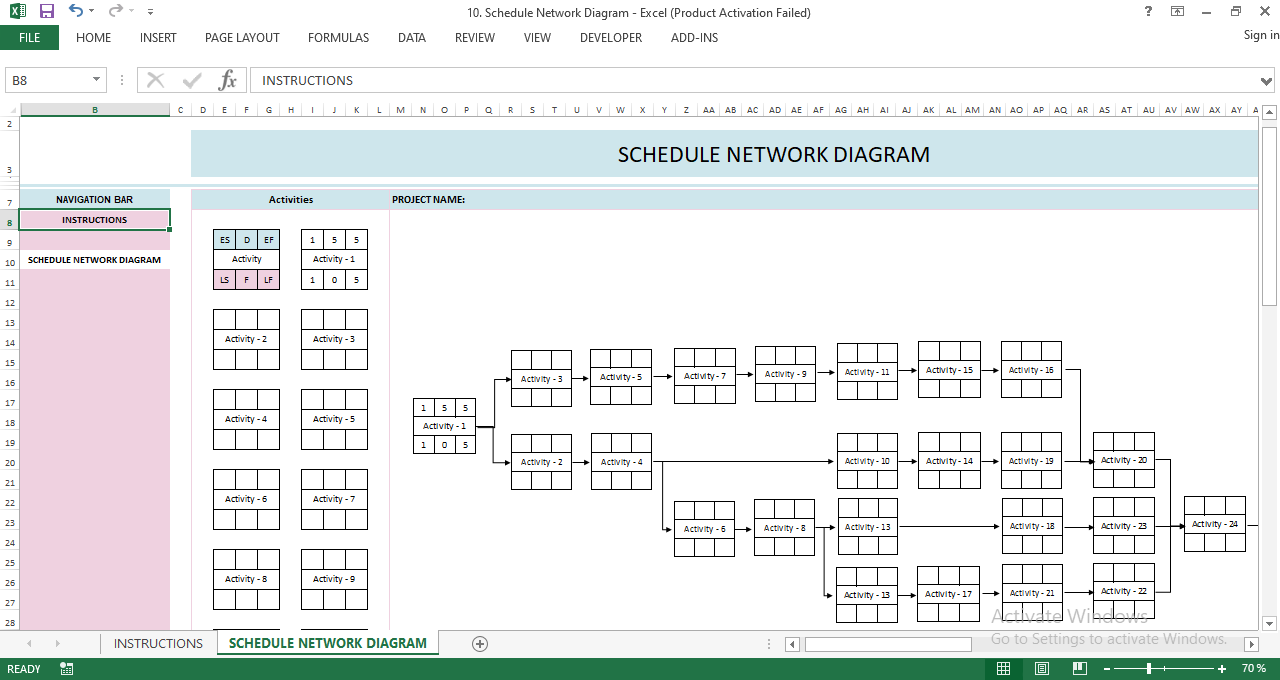

1. SCHEDULE NETWORK DIAGRAM (Main Sheet)

A fully prepared network diagram that includes:

• Detailed activity nodes
• ES / EF / LS / LF boxes
• Duration (D)
• Float (F)
• Activity names
• Arrows showing relationships
• Complete visual flow from project start to finish
• A professional layout ready for use in reports and presentations

Nodes follow the standard PMP® format:

You simply enter:

✔ Duration

✔ Early start / Early finish calculations

✔ Late start / Late finish calculations

✔ Float

Everything fits neatly into the prebuilt structure.

Included Instructions

The template includes clear step-by-step explanations of:

1. Forward Pass

• Calculate Early Start (ES)
• Calculate Early Finish (EF)
• Formula: EF = ES + Duration − 1
• ES = highest previous EF + 1

2. Backward Pass

• Calculate Late Finish (LF)
• Calculate Late Start (LS)
• Formula: LS = LF − Duration + 1
• LF = lowest subsequent LS − 1

3. Float Calculation

• F = LS − ES

These calculations help determine the critical path, where float = 0.

Key Features

✔ Preformatted nodes for up to 24 activities

✔ Clean and professional network layout

✔ Ready-to-use arrows and connections

✔ Editable activity labels

✔ Standard PMP® node format

✔ Designed for real project planning

✔ Works in Excel and Google Sheets

✔ Ideal for PMP® exam practice and project scheduling

Who Should Use This Template?

• Project Managers
• Construction Planners
• Engineers
• PMO Teams
• Operations Managers
• Students studying project scheduling
• PMP® / CAPM® exam candidates
• Anyone needing a visual project timeline

If your work includes planning or tracking activities, this tool is essential.

Plan Your Project With Confidence

Stop drawing network diagrams manually.

Stop wasting time formatting shapes.

This template gives you a complete, professional, clean, and ready-to-use network diagram that you can plug directly into your project plan.

Get Your Copy Now

Start building accurate project schedules and identifying the critical path with ease.
